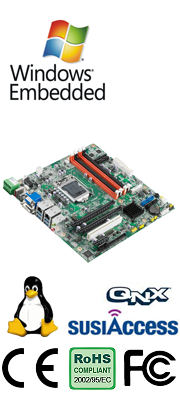

AIMB-502 Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with CRT/DVI/HDMI

6 COM

AIMB-502 Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with CRT/DVI/HDMI

AIMB-502 Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with CRT/DVI/HDMI, 6 COM, Dual LAN, SATAIII

Call for Price

Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with CRT/DVI/HDMI, 6 COM, Dual LAN, SATAIII.

SKU: AIMB-502 Category: Micro ATX

Please click the link below to open the PDF datasheet

Supports Intel® Xeon®/ Core™ i7/i5/i3 processor with Q77/C216 chipset
Four DIMM sockets support up to 32 GB DDR3 1333/1600 MHz SDRAM
Supports CRT, DVI, HDMI, Phoenix connector and dual GbE LAN
Supports Intel AMT 8.0 and Intel vPro competent
Supports 2 SATAIII, 6 SATAII, 1 eSATA, 1 mSATA, Software RAID 0, 1, 5, 10
Supports PCIE Gen3, USB 3.0 x 4. TPM 1.2 (Optional)
Supports SUSIAccess and Embedded Software APIs

Processor System

CPU: Intel Xeon E3-1275v2
Core Number: 4
Max. Speed 3.5 GHz
Integrated Graphics: Yes
L3 Cache: 8 MB
Supports Model: WG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Xeon E3-1275
Core Number: 4
Max. Speed: 3.4 GHz
Integrated Graphics: Yes
L3 Cache: 8 MB
Supports Model: WG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Xeon E3-1225v2
Core Number: 4
Max. Speed: 3.2 GHz
Integrated Graphics: Yes
L3 Cache: 8 MB
Supports Model: WG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Xeon E3-1225
Core Number: 4
Max. Speed: 3.1 GHz
Integrated Graphics: Yes
L3 Cache: 6 MB
Supports Model: WG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Core i3-2120
Core Number: 2
Max. Speed: 3.3 GHz
Integrated Graphics: Yes
L3 Cache: 3 MB
Supports Model: WG2/QG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Pentium G850
Core Number: 2
Max. Speed: 2.9 GHz
Integrated Graphics: Yes
L3 Cache: 3 MB
Supports Model: WG2/QG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Core i7-3770
Core Number: 4
Max. Speed:3.4GHz
Integrated Graphics: Yes
L3 Cache: 8 MB
Supports Model: QG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Core i7-2600
Core Number: 4
Max. Speed: 3.4 GHz
Integrated Graphics: Yes
L3 Cache: 8 MB
Supports Model: QG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Core i5-3550S
Core Number: 4
Max. Speed: 3.0GHz
Integrated Graphics: Yes
L3 Cache: 6 MB
Supports Model: QG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Core i3-3220
Core Number: 2
Max. Speed: 3.3 GHz
Integrated Graphics: Yes
L3 Cache: 3 MB
Supports Model: QG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Core i5-2400
Core Number: 4
Max. Speed: 3.1 GHz
Integrated Graphics: Yes
L3 Cache: 6 MB
Supports Model: QG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

CPU: Intel Celeron G540
Core Number: 2
Max. Speed: 2.5 GHz
Integrated Graphics: Yes
L3 Cache: 2 MB
Supports Model: QG2
Chipset: Q77/C216
BIOS: AMI EFI 64 Mbit SPI

Expansion Slot

PCI: 32-bit/33 MHz, 1 slot
PCIe x1: (Gen2) 500MB/s per direction, 1 slot
PCIe x16: (Gen3) 16GB/s per direction, 1 slot (QG2), 2 slot (WG2: PCIe x8 single per slot only)

Memory

Technology: Dual Channel DDR3 1333/1600 MHz SDRAM
Max. Capacity: 32 GB/8 GB per DIMM
Socket: 4 x 240-pin DIMM (Non-ECC)

Graphics

Controller: Intel HD Graphics
VRAM: 1 GB maximum shared memory with 2 GB and above system memory installed
HDMI: Supports max resolution 1920 x 1200 (1080P)
CRT: Supports max resolution 2048 x 1536 at 60 Hz
DVI: Supports max. resolution 1920 x 1200 at 60 Hz
Triple Display: CRT+DVI+HDMI
Dual Display: CRT+DVI, CRT+HDMI, DVI+HDMI

Ethernet

Interface: 10/100/1000 Mbps
Controller: GbE LAN1: Intel 82579LM, GbE LAN2: Intel 82574L
Connector: RJ-45 x 2

SATA

Max Data Transfer Rate: 600 MB/s (SATA 3.0)/ 300 MB/s (SATA 2.0) / eSATA / mSATA
Channel: 2/6/1/1

Rear I/O

CRT: 1
DVI: 1
HDMI: 1
Ethernet: 2
USB: 4 (4 USB 3.0)
Audio: 2 (Mic-in, Line-out)
Serial: 1 (RS-485 from Phoenix connector)
Phoenix: 1 (1 RS-485 + 6 bit GPIO: fixed 4 in, 2 out, can’t programmable)
eSATA: 1

Internal Connector

USB: 2 (USB 2.0)
Serial: 5 (RS-232)
IDE: –
SATA: 2 x 600 MB/s (SATA 3.0)/6 x 300 MBs (SATA 2.0) / 1 x eSATA / 1 x mSATA
IrDA: –
GPIO 14 bit GPIO (6 bit non-programmable GPIO via Phoenix connector on rear side and 8 bit programmable GPIO by pin header on board)

Watchdog Timer

Output System reset
Interval: Programmable 1 ~ 255 sec/min

Power Requirements Intel Core i7-3770 3.4 GHz, 8 GB DDR3 1600 MHz x 4pcs

Power On: +5V/2.69 A, 3.3 V/ 0.93 A, 12 V/5.3 A, 5 Vsb/ 0.0 A, -12 V/O.52 A

Environment

Operating Temperature: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution

Physical Characteristics

Dimensions: 244 mm x 244 mm (9.6″ x 9.6″)
