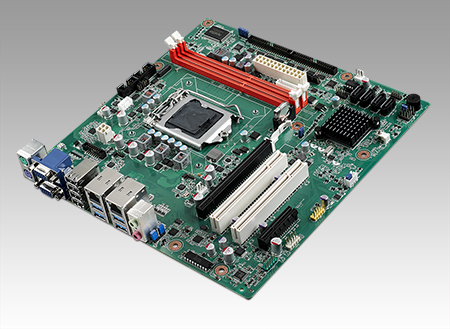

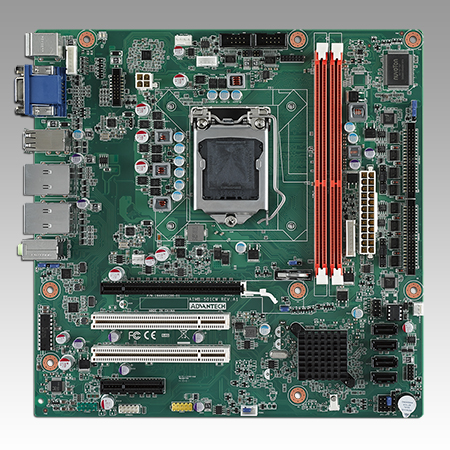

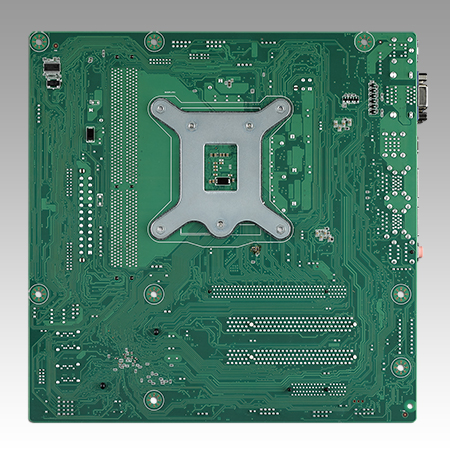

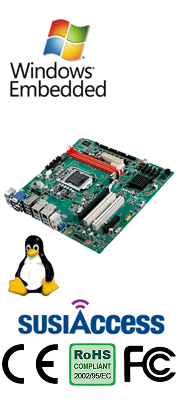

AIMB-501CW 3rd Gen Intel® Core™ i7/i5/i3 LGA1155 MicroATX with B75/H61, Triple VGA, 10 COM, 2 USB 3.0, 8 USB 2.0 (F)/ or 10 USB 3.0 (G2) , Dual LAN, PCIex 16
Call for Price
3rd Gen Intel® Core™ i7/i5/i3 LGA1155 MicroATX with B75/H61, Triple VGA, 10 COM, 2 USB 3.0, 8 USB 2.0 (F)/ or 10 USB 3.0 (G2) , Dual LAN, PCIex 16
Please click the link below to open the PDF datasheet
View Datasheet - Supports WISE PaaS/RMM and Embedded Software APIs
- Supports 10 USB 2.0 (G2 sku) or 2 USB 3.0 and 8 USB 2.0 ( F sku)
- Supports 10 COM, LPT (pin header), TPM 1.2 (Optional)
- Supports triple / dual display of VGA and two GbE LAN
- Two DIMM sockets support up to 16 GB DDR3 1066/1333/1600 MHz SDRAM
- Supports Intel® Core™ i7/i5/i3 processor with B75 / H61 chipset
- Processor System
- CPU: Intel Core i7-3770
- Core Number: 4
- Max. Speed 3.4 GHz
- Integrated Graphics: Yes
- L3 Cache: 8 MB
- CPU: Intel Core i5-3550S
- Core Number: 4
- Max. Speed: 3.0 GHz
- Integrated Graphics: Yes
- L3 Cache: 6 MB
- CPU: Intel Core i3-3220
- Core Number: 2
- Max. Speed: 3.3 GHz
- Integrated Graphics: Yes
- L3 Cache: 3 MB
- CPU: Intel Core i7-2600
- Core Number: 4
- Max. Speed: 3.4 GHz
- Integrated Graphics: Yes
- L3 Cache: 8 MB
- CPU: Intel Core i5-2400
- Core Number: 4
- Max. Speed: 3.1 GHz
- Integrated Graphics: Yes
- L3 Cache: 6 MB
- CPU: Intel Core i3-2120
- Core Number: 2
- Max. Speed: 3.3 GHz
- Integrated Graphics: Yes
- L3 Cache: 3 MB
- CPU: Pentium G850
- Core Number: 2
- Max. Speed: 2.9 GHz
- Integrated Graphics: Yes
- L3 Cache: 3 MB
- CPU: Celeron G540
- Core Number: 2
- Max. Speed: 2.50 GHz
- Integrated Graphics: Yes
- L3 Cache: 2 MB
- Chipset: B75
- BIOS: AMI EFI 64 Mbit SPI
- PCI: 2
- PCIe x 4 (Gen2): 500MB/s per direction, 1 slot
- PCIe x16 (Gen3): 16 GB/s per direction, 1 slot
- Technology: Dual Channel DDR3 1600/1333 MHz SDRAM
- Max. Capacity: 16 GB/8 GB per DIMM
- Socket: 2 x 240-pin DIMM (Non-ECC)
- Controller: Intel HD Graphics
- VRAM: 1GB maximum shared memory with 2GB and above system memory installed
- LVDS: N/A
- CRT: Yes, supports max. resolution 2048 x 1536 (VGA1)
- Dual Display: CRT1 + CRT2, CRT2 + CRT3, CRT1 + CRT3
- Triple Display: CRT1 + CRT2 + CRT3
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN: Realtek 8111E
- Connector: RJ-45 X 2
- Max Data Transfer Rate 300 MB/s (SATA 2.0)
- Channel: 4
- CRT: 2
- Ethernet: 2
- USB: 8 (4 USB 3.0 and 4 USB 2.0)
- Audio: 2 (Mic-in, Line-out)
- Serial: –
- PS/2: 2 (1 x keyboard and 1 x mouse)
- VGA: 1 (Pin header on board)
- USB: 2 (USB 2.0)
- Serial: 10 (8 x RS-232, 2 x RS-232/422/485; COM 3 and COM 7 support RS-232/422/485 auto flow control; COM 1 and COM 2
- Parallel: 1 (pin header)
- SATA: 4 (SATA 2.0)
- LVDS & Inverter: 1
- IrDA: –
- GPIO: 8-bit GPIO
- Output System reset
- Interval Programmable: 1 ~ 255 sec/min
- Intel Core i7-2600 3.4GHz, 4GB DDR3 1333MHz x 2pcs
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
- Non-Operating Temperature: -40 ~ 85° C (-40 ~ 185° F)
- Dimensions: 244 mm x 244 mm (9.6″ x 9.6″)
Expansion Slot
Memory
Graphics
Ethernet
SATA

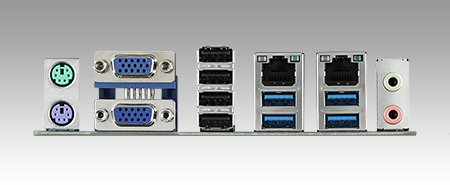

Rear I/O
Internal Connector
supported 5V/12V by jumper selection)
Watchdog Timer
Power Requirements
Power On
+3.3 V/ +12 V/ -12 V/ 5 VSB/ 5 V
1.05 A/ 6.66 A/ 0.13 A/ 0.49 A/ 2.25 A
Environment
Physical Characteristics
