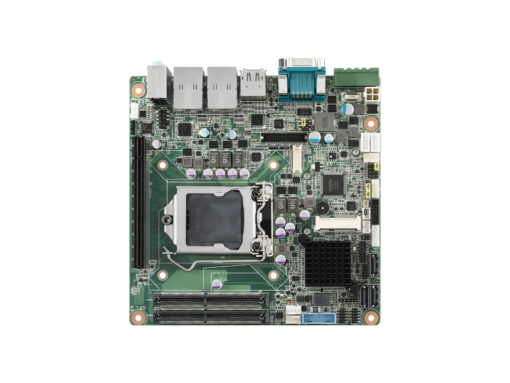

AIMB-275 7th & 6th Gen Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX with Q170/H110, DP++/HDMI/LVDS, 2 COM, Dual LAN, PCIe x16, M.2, DDR4, DC Input

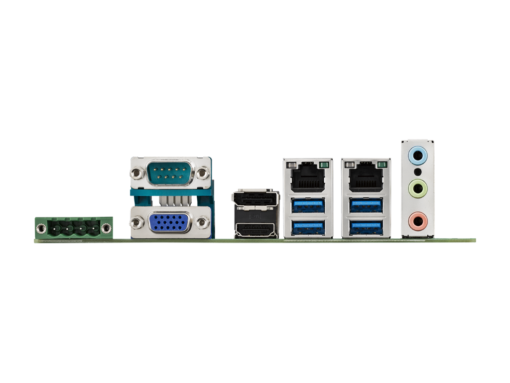

AIMB-275 7th & 6th Gen Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX with Q170/H110, DP++/HDMI/LVDS, 2 COM, Dual LAN, PCIe x16, M.2, DDR4, DC Input - Image 2

AIMB-275 7th & 6th Gen Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX with Q170/H110, DP++/HDMI/LVDS, 2 COM, Dual LAN, PCIe x16, M.2, DDR4, DC Input - Image 3

AIMB-275 7th & 6th Gen Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX with Q170/H110, DP++/HDMI/LVDS, 2 COM, Dual LAN, PCIe x16, M.2, DDR4, DC Input - Image 4

AIMB-275 7th & 6th Gen Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX with Q170/H110, DP++/HDMI/LVDS, 2 COM, Dual LAN, PCIe x16, M.2, DDR4, DC Input

Call for Price

Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX with VGA/DP++/HDMI/LVDS(eDP), 2 COM, Dual LAN, PCIe x16, M.2, DDR4, DC Input

SKU: AIMB-275 Category: Mini ITX

Please click the link below to open the PDF datasheet

- Supports Intel® 7th & 6th Gen Core™ i processor (LGA1151) with Intel Q170/H110 chipset
- Two 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM
- Supports triple display of DP/HDMI/LVDS(eDP)
- Supports PCIe x16 (Gen 3), 1 F/S miniPCIe 1 M.2 (NGFF), 6 USB 3.0 and 3 SATA III
- Support wide range 12V~24V DC Input
- Supports Intel vPro, AMT 11.0, PECI 3.0, Software RAID 0,1,5,10, TPM 1.2 / 2.0 (optional)
- Supports SUSIAccess and Embedded Software APIs

See Datasheet
