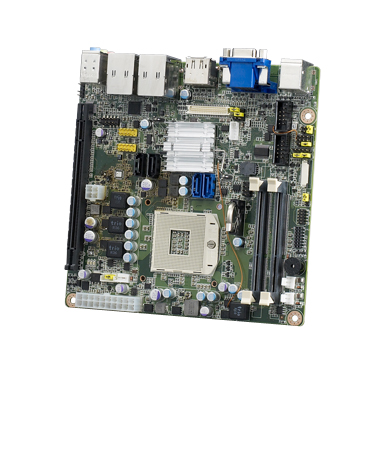

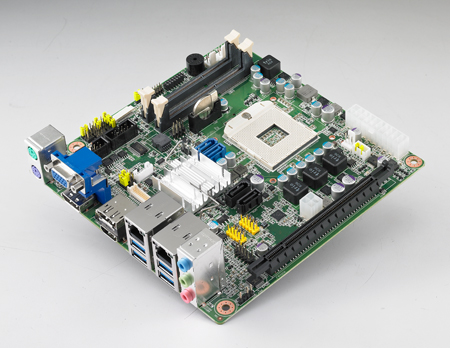

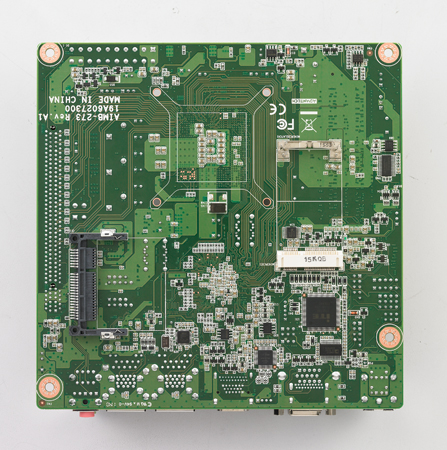

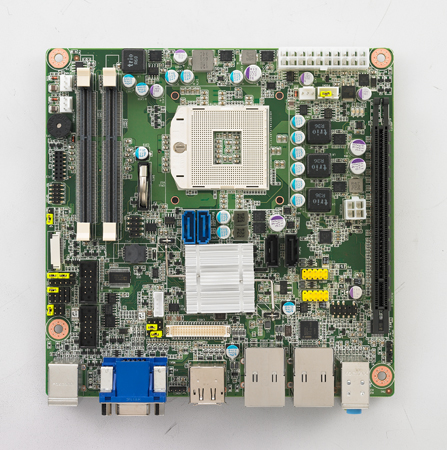

AIMB-273 Intel® Core™ i7/i5/i3/Celeron uFC-PGA988 Mini-ITX with 2 DP/HDMI/ LVDS/CRT, 2 COM, Dual LAN, PCIe x16

Processor System

• • CPU: Intel Core i7-3610QE
  • Core Number: 4
  • Max Speed: 2.3 GHz
  • L3 Cache: 6 MB



• • CPU: Intel Core i7-2710QE
  • Core Number: 4
  • Max Speed: 2.1 GHz
  • L3 Cache: 6 MB



• • CPU: Core i5-3610ME
  • Core Number: 2
  • Max Speed: 2.7GHz
  • L3 Cache: 3MB



• • CPU: Core i5-2510E
  • Core Number: 2
  • Max Speed: 2.5 GHz
  • L3 Cache: 3 MB



• • CPU: Core i3-3120ME
  • Core Number: 2
  • Max Speed: 2.4 GHz
  • L3 Cache: 3 MB



• • CPU: Core i3-2330E
  • Core Number: 2
  • Max Speed: 2.2 GHz
  • L3 Cache: 3 MB



• • CPU: Celeron B810
  • Core Number: 2
  • Max Speed: 1.6 GHz
  • L3 Cache: 2 MB



• • Chipset: QM77
  • BIOS: AMI EFI 64 Mbit SPI

Expansion Slot

• • PCI: –
  • Mini-PCIe: 1
  • PCIe: x16 (Gen3) 16 GB/s per direction, 1 slot

Memory

• • Technology: Dual Channel DDR3 1333/1600 MHz SDRAM
  • Max. Capacity: 16 GB/8 GB per SO-DIMM
  • Socket: 2 x 204 PIN DDR3 SO-DIMM

Graphics

• • Controller: Integrated Gfx Gen 7, supports DirectX11, OpenGL 3.1 and OpenCL 1.1
  • VRAM: Shared system memory, 2 GB and above, total system memory shared 1 GB maximum video memory
  • CRT: Yes, supports max. resolution 2048 x 1536
  • LVDS: Supports dual channel 48 bit up to 1920 x 1080
  • HDMI: Supports HDMI 1.4, 1650 Mbps/channel with 165 MHz
  • Triple Display: DP+LVDS+HDMI, DP+DP+HDMI, DP+DP+LVDS, DP+CRT+HDMI (The Celeron B810 processor doesn’t support triple display)

Ethernet

• • Interface 10/100/1000 Mbps
  • Controller GbE LAN1: Intel 82579LM, LAN2: Intel 82583V
  • Connector RJ-45 x 2

SATA

• • Max Data Transfer Rate: 600 MB/s (SATA 3.0)/ 300 MB/s (SATA 2.0)
  • Channel: 2/2

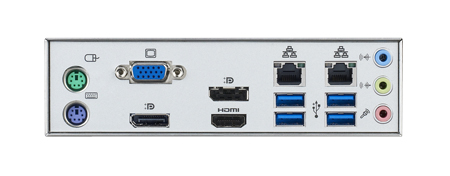

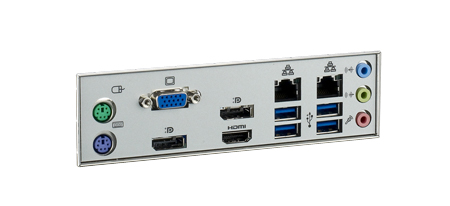

Rear I/O

• • CRT: 1
  • HDMI: 1
  • Display Port: 2
  • Ethernet: 2
  • USB: 4 (USB 3.0)
  • Audio: 3 (Mic-in, Line-out, Line-in)
  • Serial: –
  • PS/2: 2 (1 x keyboard and 1 x mouse)

Internal Connector

• • USB: 4 (USB 2.0)
  • LVDS/Inverter: 1
  • Serial: 2 (RS-232, COM2 with 5 V/12 V)
  • IDE: –
  • SATA: 2 (SATA 3.0), 2 (SATA 2.0)
  • Mini-PCIe: 1
  • CFast: 1
  • Parallel: –
  • IrDA: –
  • GPIO: 8-bit

Watchdog Timer

• • Output: System reset
  • Interval: Programmable 1 ~ 255 sec/min

Power Requirements

• • Power On: Intel Core i7 -3610QE 2.30GHz processor/DDR3-1333MHz 4G x2/16G SQFlash

5 V/ 3.3 V/ 12 V/ 5 Vsb/ -12 V
3.42 A/ 1.1 A/ 1.19 A/ 0.5 A/ 0.07A

Environment

• • Operating Temperature: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
  • Non-Operating Temperature: -40 ~ 85° C (-40 ~ 185° F)

Physical Characteristics

• • Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
