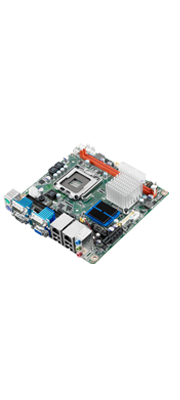

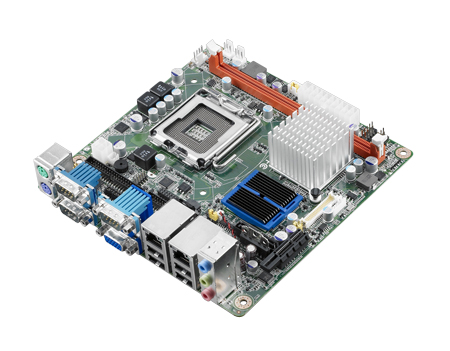

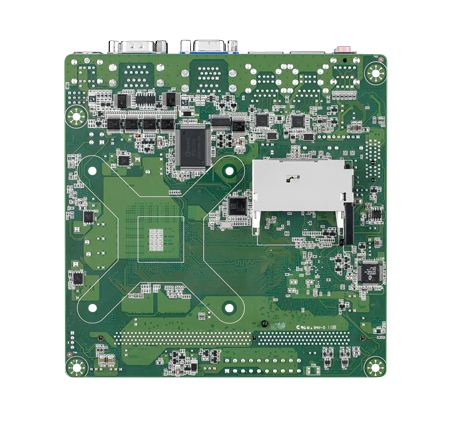

AIMB-267 Intel® Core™2 Quad LGA 775 mini-ITX with CRT/LVDS, 8 COM, Dual LAN
Call for Price
Intel® Core™2 Quad LGA 775 Mini-ITX with CRT/LVDS,8 COM, Dual LAN.
Please click the link below to open the PDF datasheet
View Datasheet - Intel® G41 chipsets supports 1333/1066/800 MHz FSB
- Single channel DDR3 1066/800 MHz SDRAM up to 4 GB
- Supports CRT and single/dual channel 24/48 bit LVDS panel and dual channel 6 W amplifier
- Supports 8 serial ports, 8 USB, 8-bit GPIO, dual LAN
- Supports PCIe x1, CF card
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU (45nm/65nm): Intel Core 2 Quad
- CPU (45nm/65nm): Intel Core 2 Duo
- CPU (45nm/65nm): Intel Pentium
- CPU (45nm/65nm): Intel Celeron
- PCIe : x16 –
- PCIe : x1 250 MB per direction, 1
- PCI : –
- Technology : Single Channel DDR3 1066/800 MHz
- Max. Capacity : 4 GB
- Socket : 1 x 240-pin DIMM (Non-ECC)
- Embedded : Intel GMA X4500 sharing 352M system memory
- LVDS : Supports single channel 24-bit/dual channel 48-bit LVDS, via Chrontel 7308B SDVO transmitter
- CRT : Supports 1 CRT
- Dual Display : CRT + LVDS
- Interface : 10/100/1000 Mbps
- Controller : GbE LAN Realtek 8111E
- Connector : RJ-45 x 2
- Max. Data Transfer Rate: 300 MB/s
- Channel : 2
- Mode : –
- Channel : –
- CRT : 1
- USB : 8
- Audio : 3 (Mic-in, Line-in, Line-out)
- Serial : 8 (7 of RS-232. COM 3 supports RS-232/422/485, supports RS-485 auto flow control)
- Parallel : 1 (SPP/EPP/ECP)
- FDD : –
- PS/2 : 2 (1 x keyboard and 1 x mouse)
- GPIO : 8-bit GPIO
- Output : System reset
- Interval Programmable : 1 ~ 255 sec/min
- Power On : Intel Core 2 Quad Q9400 2.66GHz FSB 1333 MHz, 2GB DDR3 1066 SDRAM
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
- Non-Operating Temperature:-40 ~ 85° C (-40 ~ 185° F)
- Dimensions (W x D) : 170 x 170 mm (6.69″ x 6.69″)
Max. Speed : Q9650 3.0GHz
L2 Cache : 12M
Chipset : Intel G41+ICH7
BIOS : AMI 16Mbit, SPI
Front Side Bus : 1333/1066/800 MHz
Max. Speed : E8400 3.0 GHz
L2 Cache : 6M
Chipset : Intel G41+ICH7
BIOS : AMI 16Mbit, SPI
Front Side Bus : 1333/1066/800 MHz
Max. Speed : E2160 1.80 GHz
L2 Cache : 512 KB
Chipset : Intel G41+ICH7
BIOS : AMI 16Mbit, SPI
Front Side Bus : 1333/1066/800 MHz
Max. Speed : E1500 2.20 GHz
L2 Cache : 512 KB
Chipset : Intel G41+ICH7
BIOS : AMI 16Mbit, SPI
Front Side Bus : 1333/1066/800 MHz
Expansion Slot
Memory
Graphics
Ethernet
SATA II
EIDE
I/O Interface
Watchdog Timer
Power Requirements
3.3 V/0.35 A
5 V/ 1.91 A
12 V/ 1.29 A
5 Vsb /0.18 A
-12 V/ 0.06 A
Environment
Physical Characteristics
