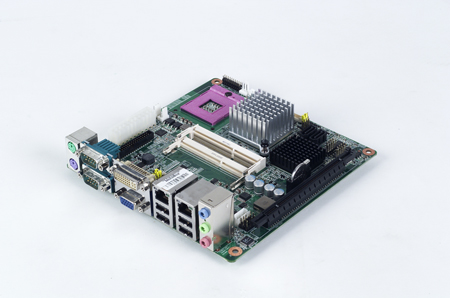

AIMB-258 Intel® Core™2 Duo Socket 479 Mini-ITX with CRT/DVI/LVDS, 6 COM and Dual LAN
Call for Price
Intel® Core™2 Duo Socket 479 Mini-ITX with CRT/DVI/LVDS, 6 COM and Dual LAN.
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® Core™2 Duo mobile processor uFC-PGA 478 dual channel DDR3 800/1066 MHz SDRAM and max. 4 GB dual channel DDR3 800/1066 MHz SDRAM
- Intel GM45 and ICH9M supports FSB 667/800/1066 MHz
- Supports dual display for CRT, LVDS, and DVI
- PCIe x16 expansion for add-on cards
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- Max. Speed: T9400 2.53 GHz
- Front Side Bus: 667/800/1066 MHz
- L2 Cache: 6 MB
- Chipset: GM45 + ICH9M
- BIOS: Award 16 Mbit, SPI
- Max. Speed: P8600 2.4GHz
- Front Side Bus: 1066 MHz
- L2 Cache: 3 MB
- Chipset: GM45 + ICH9M
- BIOS: Award 16 Mbit, SPI
- Max. Speed: P8400 2.26GHz
- Front Side Bus: 1066 MHz
- L2 Cache: 3 MB
- Chipset: GM45 + ICH9M
- BIOS: Award 16 Mbit, SPI
- Max. Speed: 575 2.0 GHz
- Front Side Bus: 667
- L2 Cache: 1 MB
- Chipset: GM45 + ICH9M
- BIOS: Award 16 Mbit, SPI
- PCI: –
- Mini-PCI: –
- PCIe x16: 4 GB/s per direction, 1 slot (if PCIe x16 is used, DVI is automatically disabled)
- Technology: DDR3 800/1066 MHz SDRAM
- Max. Capacity: 4 GB
- Socket: 2 x 204-pin SODIMM (Non-ECC)
- Controller: Intel GM45 GMCH integrated Graphics Media Accelerator X4500
- VRAM: Shared system memory up to 384 MB video memory
- LVDS: Single channel 18/24-bit/Dual channel 36/48-bit LVDS
- TV-Out: –
- DVI: Yes (if DVI is used, PCIex 16 is automatically disabled)
- Dual Display: CRT + DVI; CRT + LVDS; DVI + LVDS
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Realtek RTL8111C; GbE LAN2: Realtek RTL8111C
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 300 MB/s
- Channel: 2
- CompactFlash: Supports CompactFlash Type I/II
- CRT: 1
- DVI: 1
- Ethernet: 2
- USB: 4 (USB 2.0 compliant)
- Audio: 3 (Mic-in, Line-in, Line-out)
- Serial: 2 (1 of RS-232, 1 of RS-232/422/485)
- PS/2: 2 (1 x keyboard and 1 x mouse)
- LVDS: 1
- USB: 4 (USB 2.0 compliant)
- Serial: 4 (RS-232)
- IDE: –
- SATA: 2
- CompactFlash: 1
- Parallel: –
- IrDA: –
- FDD: –
- GPIO: 16-bit
- Output: System reset
- Interval Programmable: 1 ~ 255 sec/min
- Power On: Intel Core™2 Duo Mobile Processor T9400 2.53GHz, 4 GB DDR3 SDRAM
- Temperature: 0 ~ 60° C (32 ~ 140° F)
- Temperature: -20 ~ 70° C (-4 ~ 158° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
CPU (45 nm µFC-PGA 478) Intel Core 2 Duo
CPU (45 nm µFC-PGA 478):Intel Core 2 Duo
CPU (45 nm µFC-PGA 478):Intel Core 2 Duo
CPU (45 nm µFC-PGA 478):Intel Celeron M
Expansion Slot
Memory
Graphics
Ethernet
SATA
SSD
Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
5 V 3.3 V 12 V 5 Vsb -12 V
0.99 A 2.67 A 2.07 A 0.17 A 0.08 A
Environment
Operating
Non-Operating
Physical Characteristics
