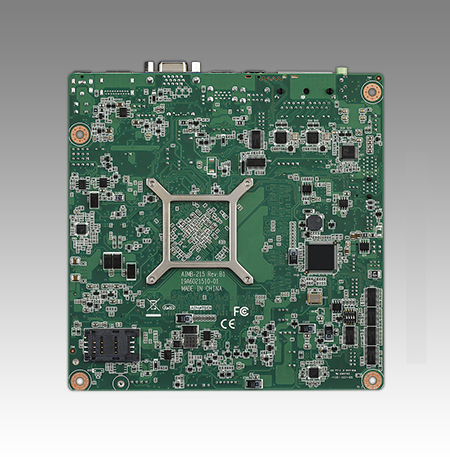

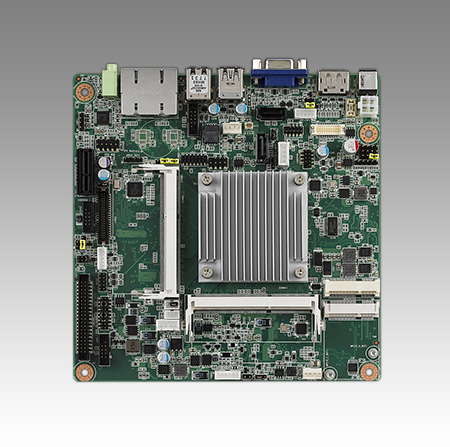

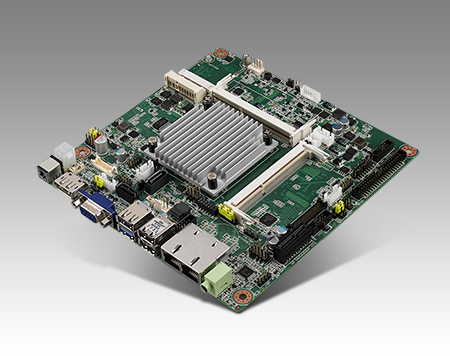

AIMB-215 B1 Intel® Celeron® Quad Core J1900/N2930/N2807 Mini-ITX with CRT/LVDS/DP++,6 COM, and Dual LAN
Call for Price
AIMB-215 B1 Intel® Quad Core J1900N2930N2807 Mini-ITX with CRTLVDSDP++,6 COM, and Dual LAN
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel Celeron Quad Core J1900/N2930/N2807 processor
- Two 204-pin SO-DIMM up to 8 GB DDR3L 1333 MHz SDRAM
- Supports VGA/DP1.2 /24-bit dual channel LVDS
- Supports 1 PCIE x1 and 2 mini-PCIE expansion slot, 6 COMs, 7 USB 2.0, and 1 USB 3.0
- Lower total cost of ownership with DC12V support and onboard TPM1.2(optional)
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU (32nm): Intel J1900
- Max. Speed: 2.0 GHz (Quad core)
- L2 Cache: 2 MB
- BIOS: AMI 16 Mbit SPI
- CPU (32nm): Intel N2930
- Max. Speed: 1.83 GHz (Quad core)
- L2 Cache: 2 MB
- BIOS: AMI 16 Mbit SPI
- CPU (32nm): Intel N2807
- Max. Speed 1.58 GHz (Dual core)
- L2 Cache 1 MB
- BIOS: AMI 16 Mbit SPI
- PCI: –
- Mini-PCIe: 2 (F/S x 1 support mSATA, H/S x 1 with SIM card holder); H/S MiniPCIe colay PCIex1
- PCIe: PCI Express x1 (Gen2), colay H/S MiniPCIe
- Technology: Dual channel DDR3L 1066/1333 MHz SDRAM
- Max. Capacity: 8 GB/4 GB per SO-DIMM
- Socket: 2 x 204-pin SO-DIMM (Non-ECC)
- Controller: Intel Gen 7 Graphics Engines and media encode/decode engine; GPU Frequency: 688 MHz for J1900;
- VRAM: Shared system memory up to 224 MB SDRAM
- VGA: Supports up to 2560 x 1600
- LVDS: Supports dual channel 48-bit up to 1920 x 1200
- Display Port: 1.2 1, Supports DP++, resolution up to 2560 x 1600 colay eDP port (optional)
- Dual Display: VGA+DP1.2, VGA+LVDS, LVDS+DP1.2, VGA+eDP (optional), LVDS+eDP (optional), Supports extended mode and clone mode
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Realtek 8111E
- Max Data Transfer Rate: 300 MB/s
- Channel: 2, SATA 2 colay mSATA (optional); SATA 1 support SATA-DOM device
- CRT: 1
- DP1.2: 1
- Ethernet: 2
- USB: 4 (3 x USB 2.0/1 x USB 3.0)
- Audio: 1 (Mic-in or Line out)
- DC jack: 1 (2.5 mm)
- LVDS & Inverter: 1/1
- eDP: 1 (optional)
- USB: 4 (USB 2.0 compliant)
- Serial: 6 (5 x RS-232, 1 x RS-232/422/485; COM 3 support RS-232/422/485 auto flow control; COM 6 support 5V/12V by jumper selection)
- IDE: None
- SATA: 2
- SATA PWR Connector: 2
- Parallel: None
- GPIO: 8-bit
- PS/2 KB & MS: 1
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power Type: Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2×2) power connector; Supports AT/ATX mode
- Typical Power Consumption: Win Idle 10.17 W (Intel Celeron J1900 2.0 GHz / DDR3L 1600 MHz 4GB x 2)
- Operating: Temperature: 0 ~ 60° C (32 ~ 140° F) with 0.7m/s air flow
- Non-Operating: Temperature: -40 ~ 85° C (-40 ~ 185° F)
- Dimensions 170 mm x 170 mm (6.69″ x 6.69″)
Expansion Slot
Memory
Graphics
313 MHz for N2930
Ethernet
GbE LAN2: Realtek 8111E
Connector RJ-45 x 2
SATA

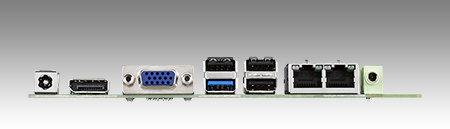

Rear I/O
Internal Connector
Watchdog Timer
Power
Environment
Physical Characteristics
