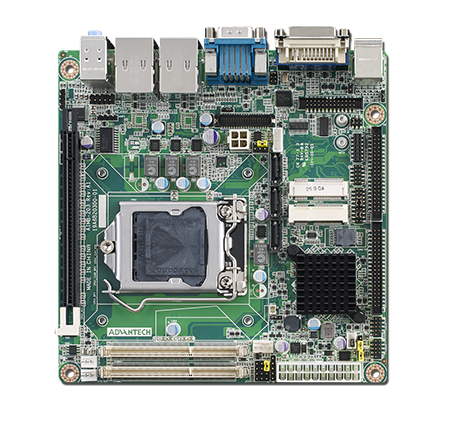

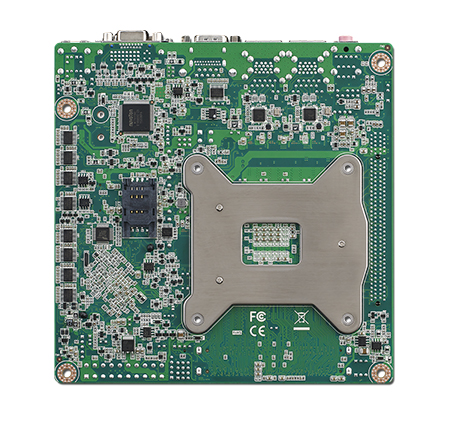

AIMB-203 4th Gen Intel® Core™ i7/i5/i3 LGA 1150 Mini-ITX with H81, CRT/DP /DVI/LVDS, 9 COM, 6 USB 3.0, 2 USB 2.0, Dual GbE LAN, PCIe x16

Call for Price

AIMB-203 4th Gen Intel® Core™ i7/i5/i3 LGA 1150 Mini-ITX with H81, CRT/DP /DVI/LVDS, 9 COM, 6 USB 3.0, 2 USB 2.0, Dual GbE LAN, PCIe x16

SKU: AIMB-203 Category:

Please click the link below to open the PDF datasheet

View Datasheet

    • Supports Intel® 4th Gen Core™ i processor (LGA1150) with Intel H81 chipset
    • Two 204-pin SO-DIMM up to 16 GB DDR3 1600 MHz SDRAM

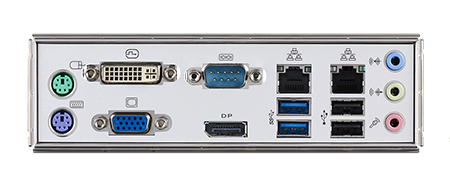

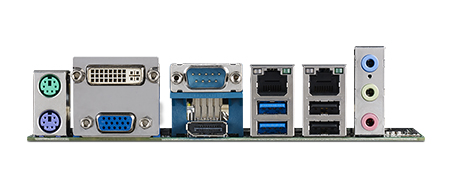

    • Supports dual display of CRT/DVI-D/DP++/LVDs
    • Supports PCIe x16 (Gen 2) and two mini PCIe
    • Supports SUSIAccess and Embedded Software APIs

See Datasheet
