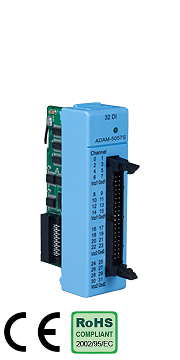

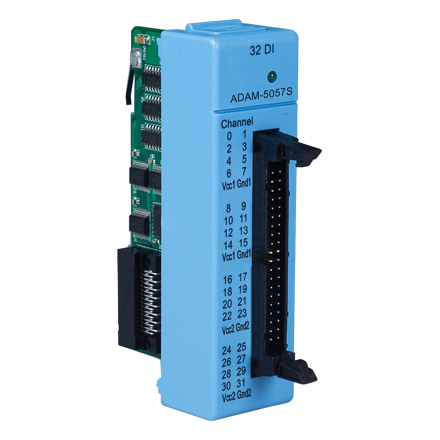

ADAM-5057S 32-ch Isolated Digital Output Module

General

• • Certifications: CE, FCC class A
  • Connectors: 1 x 40 pin (wiring line)
  • Enclosure: ABS+PC
  • LED Indicator: On: active

Off: inactive

• • Power Consumption: 1W (Max.)

Digital Output

• • Channels: 32
  • Digital Output: Must connect with 2 units

of ADAM-3920R

Protection

• • Optical Isolation: 2,500 VDC
  • Overvoltage Protection: 70 VDC

Relay Spec. of ADAM-3920R

• • Contact Rating: 10A @ 250 VAC

10A @ 30 VDC

• • Contact Resistance: 100 mW
  • Operation Time: 15 ms
  • Relay Type SPST: (Form A)
  • Release Time: 5 ms max
  • Life Expectancy: 1.7 x 105

at related load

• • Insulation Resistance: 1GW @ 500 VDC
  • Power Input: +24 VDC
  • Mounting: DIN 35 rail, wall, rack (with

mounting kit)
Note: ADAM-5057S must connect with 2 units of
ADAM-3920R via PCL-10220
Note: only for ADAM-5550 Series
