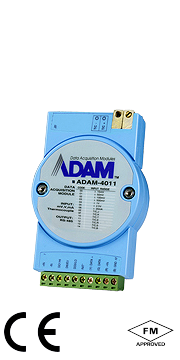

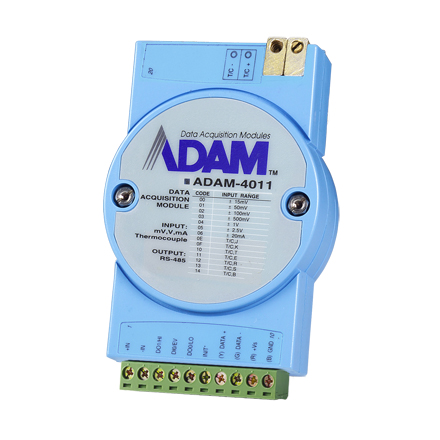

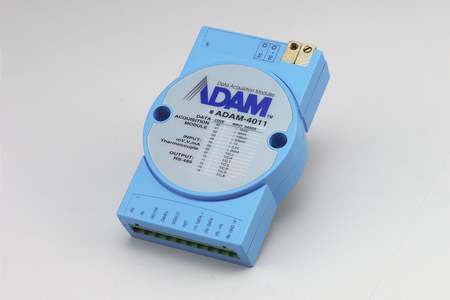

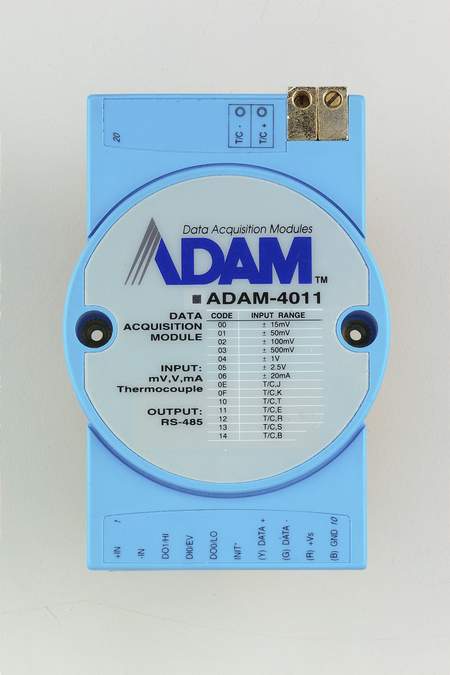

ADAM-4011 1-ch Thermocouple Input Module
£0.00 excl. vat
Analog input modules use a microprocessor-controlled integrating A/D converter to convert sensor voltage, current, thermocouple, or RTD signals into digital data. The digital data is then translated into either engineering units, twos complement hexadecimal format or percentage of full-scale range (FSR)according to the module ‘s configuration. When prompted by the host computer, the data is sent through a standard RS-485 interface. The Analog Input Modules offer signal conditioning, A/D conversion, ranging, and RS-485 digital communication functions. They protect your equipment from ground loops and power surges by providing opto-isolation of the A/D input and transformer based isolation up to 3000 V DC . (ADAM-4011 has transformer-based isolation up to 500 V DC ).
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Input type: Thermocouple, mV, V or mA
- Isolation voltage: 3000 VDC
- Watchdog Timer
- General
- Power Consumption: 1.4 W @ 24 VDC
- Supported Protocols: ASCII command
- Channels: 1
- Input Impedance: Voltage: 2 MΩ
- Input Type: T/C, mV, V or mA
- Input Range: ±15 mV, ±50 mV, ±100 mV,
- Accuracy: Voltage mode: ±0.1% or better
- T/C Type and Temperature Range:
- Span Drift: ±25 ppm/°C
- Zero Drift: ±6 µV/°C
- Channels: 1
- Event Counter: Max. input freq: 50 Hz
- Channels: 2, open collector to
- Power Dissipation: 300 mW
- Supports high/low alarms
Analog Input
Current: 125 Ω (Added by user)
±500 mV, ±1 V,
±2.5 V, ±20 mA
Current mode: ±0.2% or better
J: 0 ~ 760°C R 500 ~ 1,750°C
K: 0 ~ 1,370°C S 500 ~ 1,750°C
T: -100 ~ 400°C B 500 ~ 1,800°C
E: 0 ~ 1,000°C
Digital Input
Logic level: 0: 1 V max.
Logic level: 1: 3.5 ~ 30 V
Pull up current: 0.5 mA,
10 kΩ resistor to 5 V
Digital Output
30 V, 30 mA max. load
