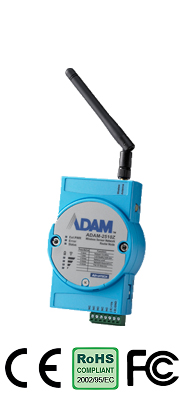

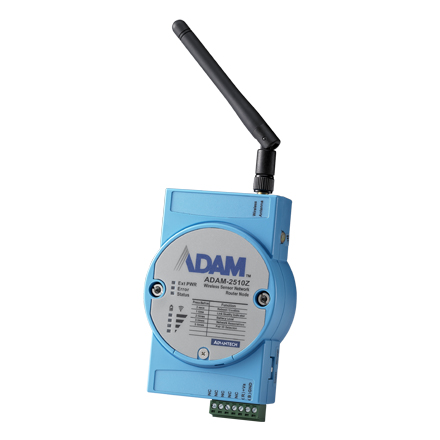

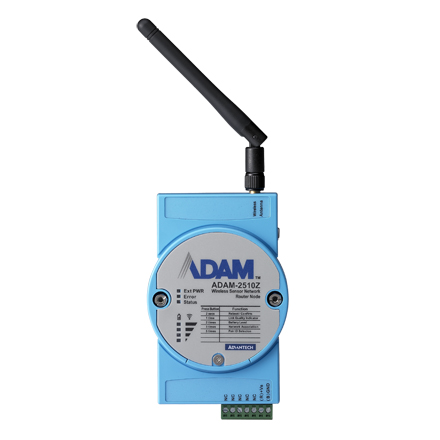

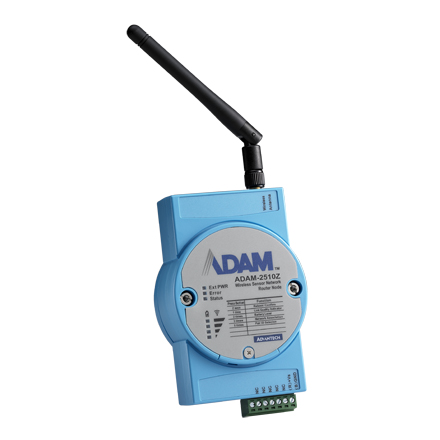

ADAM-2510Z Wireless Router Node
£172.00 excl. vat
Wireless Router Node
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Easy maintenance and field installation
- Low duty wireless communication
- Smart and simple indicator design
- Extends network range and coverage
- Outdoor range up to 1000 m
- Supports battery input with 2 x AA Alkaline batteries
- IEEE: Standard IEEE 802.15.4
- Modulation Type: DSSS (OQPSK)
- Frequency Band: ISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz)
- Channels: 11 – 26
- RF Data Rate: 250 Kbps
- Transmit Power: Typ. 19 ± 1 dBm
- Receiver Sensitivity: -97 dBm
- Topology: Star / Tree / Mesh
- Outdoor Range: 1000 m (with 2 dBi Antenna)
- Function: Router
- Connectors: 1 x plug-in terminal block (#14 ~ 22 AWG)
- Power Input: Unregulated 10 ~ 30 VDC
- Battery Input: 2 x AA Alkaline
- Power Consumption: 0.8 W @ 24 VDC
- Operating Temperature:
- Storage Temperature: -40°C~ 85°C (-40°F ~ 184°F)
- Operating Humidity: 20~95% RH
- Storage Humidity: 0~95% RH
Wireless Communication
General
0.3 W @ 3 VDC (Battery AA * 2)
Environment
External Power: -20°C ~ 70°C (-4°F ~ 157.9°F)
Battery Power: 0°C ~ 50°C (32°F ~ 122°F)
