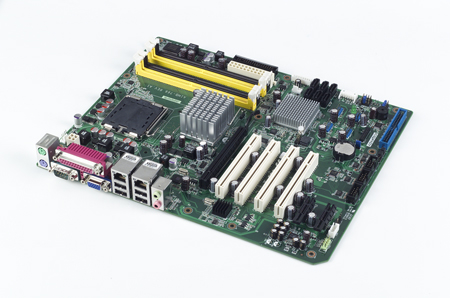

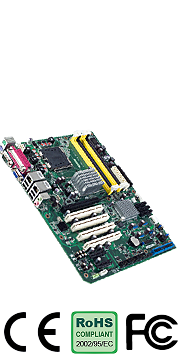

AIMB-766 LGA775 Intel® Core™ 2 Quad/Core™ 2 Duo ATX with VGA, 4 COM, and Dual LAN
Call for Price
Full-sized industrial ATX motherboards measure 305 x 244 mm and support up to 7 expansion slots. Advantech’s ATX motherboards offer a wide range of computing capacities from low power intel Pentium M based solutions to the latest multi- core processors.
Please click the link below to open the PDF datasheet
View Datasheet - Intel® Q35 and ICH9 DO supporting 800/1066/1333 MHz FSB
- Supports dual core and quad core process with 45nm processing
- Dual channel DDR2 667/800 SDRAM up to 8 GB
- Supports 4 PCI, 2 PCIe x1, 6 SATA ports and dual LAN
- Supports Embedded Software APIs and Utilities
- Processor System(all)
- Chipset: Intel Q35 + ICH9 DO
- BIOS: AMI 32 Mbit, SPI
- Front Side Bus: 800/1066/1333 MHz
- Max. Speed: Q9400 2.66 GHz
- L2 Cache: 6 MB
- Max. Speed: E8400 3.0 GHz
- L2 Cache: 6 MB
- Max. Speed: E5300 2.6 GHz
- L2 Cache: 2 MB
- Max. Speed: 440 2.0 GHz
- L2 Cache: 512 KB
- PCIe x16: 4.0 GB/s per direction, 1 slot
- PCIe x1: 250 MB/s per direction, 2 slot
- PCI: 32-bit/33 MHz, 4 slots
- Technology: Dual channel DDR2 667/800 MHz
- Max. Capacity: 8 GB
- Socket: 4x 240-pin DIMM
- Embedded: Intel GMA 3100 sharing 384 MB system memory
- Add-on: PCIe x16 slot
- Interface: 10/100/1000 Mbps
- Controller: GbE-LAN1: Intel 82566DM, GbE-LAN2: Intel 82573L
- Connector: RJ-45 x 2
- Max. Data Transfer Rate: 300 MB/s
- Channel: 6
- Mode: ATA 100/66/33
- Channel: 1 (max. 2 devices)
- VGA: 1
- USB: 12
- Audio: 2 (Mic-in, Line-out)
- Serial: 4 (3 x RS-232, 1 x RS-232/422/485)
- Parallel: 1 (SPP/EPP/ECP)
- FDD: 1
- PS/2: 2 (1 x keyboard and 1 x mouse)
- USB: 8
- Serial: 3 (2 x RS-232, 1 x RS-232/422/485)
- IDE: 1
- SATA: 6
- FDD: 1
- Output: System reset
- Interval: Programmable 1~ 255 sec/min
- Power On: Intel Core 2 Quad9300 2.5 Ghz (1333 MHz FSB), 4 x 1 GB DDR2 800 SDRAM
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler
- Non-Operating Temperature: -20 ~ 70° C (-4 ~ 158° F)
- Dimensions (W x D): 304.8 x 244 mm (12″ x 9.6″)
Processor System(Intel Core 2 Quad)
Processor System(Intel Core 2 Duo)
Processor System(Intel Pentium Dual-Core)
Processor System(Intel Celeron)
Expansion Slot
Memory
Graphics
Ethernet
SATA II
EIDE
Rear I/O
Internal Connectors
Watchdog Timer
Power Requirement
+5V/3.58A +3.3V/2.86A +12V/3.52A +5Vsb/0.74A -12V/0.02A
Environment
Physical Characteristics
